ADSL modem Ovislink WT-2000ARM TurboG+, Annex B
The AirLive WT-2000ARM is a powerful wireless router with integrated ADSL modem. For users whose ISP offers USB ADSL modems that make IP sharing difficult or for those who prefer all-in-one design, the WT-2000ARM provides the complete wireless IP sharing solution with the renown AirLive user friendly interface and elegant housing. Just plug in the ADSL line into the router, the entire wired and wireless IP sharing network is instantly established.
Feature summary:
- 125Mbps* Turbo-G Wireless ADSL2/2+ Router
- Wireless ADSL Modem Router
- Turbo-G 125Mbps Wireless
- ADSL, ADSL2, ADSL2+ Support
- Annex B support
- CD based Setup Wizard
- ESD Protection from Power Surge
- Full Range Switching Adapter

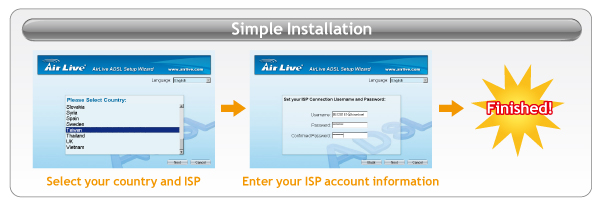

Automatic Instalation Program:
Traditionally, setting up an ADSL modem router will require user to input parameters such as Encapsulation, VPI, VCI, Handshake protocols and more.... This procedure intimidate average users who might find the parameter values difficult to obtain. With the CD setup Wizard, you no longer have to deal with the complex ADSL parameters. Just follow the setup about the country and ISP you are using and enter the ISP's login and password. Then the router is ready to work. If your country or ISP is not on the list, just tell us, we can add them in the future release.
125Mbps TurboG Wireless Architecture:
The router is equipped four 10/100Mbps LAN ports with Auto MDI/MID-X function. But for those who prefers to forgo wires together. AirLive has integrated fast Turbo-G wireless solution into the device. This mean it can achieve up to 1.5X the speed of normal 802.11g devices with Turbo-G or MIMO-G cards. It is also fully backward compatible with legacy 802.11g/b wireless devices.

Global ADSL Compatibility:
G.DMT and G.Lite are supported for connections up to 8Mbps downstream and 1Mbps upstream. Annex B is available for ADSL over conventional telephone or ISDN lines. In addition, the router features PPPoA and PPTP client to ensure compatibility with Alcatel DSLAM and PPTP users.
ADSL 2/ ADSL 2+:
In addition to current ADSL 8Mbps ADSL spec. The WT-2000ARM is also compatible with the 12Mbps ADSL2 and 24Mbps ADSL2+ spec. Therefore, the WT-2000ARM is not only ready for today, but also for tomorrow's ADSL standards.
ESD and Power Surge Protection:
The WT-2000ARM is designed to perform reliably in adverse power and weather condition. The built-in Electrostatic Discharge Protection circuit minimize the effect of static electricity in the stormy weather environment. Each WT-2000ARM comes with full range switching power supply to protect the equipment from uneven voltage. Although these extra protection increase costs, the extra protection they bring will reduce the long term service and maintenance cost.
Specyfication:
- Features:
- CD based Auto Installation for Argentina, Austria, Australia, Belgium, Czech, Denmark, Egypt, France, Germany, Israel, Italy, Netherlands, Norway, Poland, Portugal, Saudi Arabia, Slovakia, Spain, Sweden, UK, and more
- Wireless ADSL Router with built-in Modem
- Up to 24Mbps downstream(ADSL2+) and 3.5Mbps upstream bandwidth (ADSL2+M)
- Support ANSI T1.413 Issue 2, ITU-T G.992.1 (G.DMT) and ITU-T G.992.2 (G.LITE) Annex A/B ADSL standards
- Support G.992.4 ADSL 2(12Mbps) and G.992.5 ADSL2+(24Mbps)
- 4 x 10/100Mbps switching ports with Auto MDI/MDIX functions
- Web-based management
- UPnP support
- Annex B, I, M, L Support
- WPA-PSK, WPA2-PSK support
- Wireless Interface:
- Ralink Turbo-G
- Compatible with 802.11g, 802.11b, Turbo-G, MIMO-G Devices
- Turbo mode boost up to 125Mbps (Physical Layer speed)
- 16 ~ 18dBm
- 128-bit and 64-bit WEP support
- WPA-PSK, WPA2-PSK support
- Wireless MAC Address filter (8-entries)
- ADSL Data Mode:
- G.992.2 (G.LITE) : Downstream and Upstream data rates up to 1.5Mbps and 512Kbps
- G.992.1 (G.DMT): Downstream and Upstream data rates up to 8Mbps and 1Mbps
- G.992.4 splitterless ADSL 2: 12Mbps
- G.992.5 ADSL 2+: 24Mbps
- ATM Protocol
- Annex B for ADSL over analogue phone line
- Annex I, Annex M, Annex L Support
- WAN Mode Support:
- PPP Over ATM (RFC2364) and PPP Over Ethernet (RFC 2516)
- DYNDNS.org support
- LAN Mode Support:
- Auto Encapsulation Detection
- Bridge/Routed Ethernet Over ATM (RFC1483)
- Classical Internet Protocol Over ATM (RFC 1577)
- Multi-VCS support up to 8 PVCs
- Bridge Mode:
- IEEE 802.1D
- Supports MAC Bridge control
- Router Mode:
- IP routing-RIPv2, Static routing, DHCP Server and Client
- NAT, ICMP
- Firewall:
- DMZ, Virtual Server
- SPI Firewall
- ACL Acess management
- Security:
- User authentication for PPP
- PAP (Password Authentication Protocol), CHAP (Challenge Authentication
- Protocol
- Hardware Interface:
- 1 x RJ-11 ADSL Port
- 4 x 10/100Mbps switching ports
- 12Vdc power adapter
- Certifications:
- FCC Part 15/FCC Part 68
- CE/ EN60950 3rd Ed.
- Product Weight:
- Product Size:
