Bridge-Client Station 2,4GHz Helicall Deluxe P12
This array allows fold with panel antenna 18dBi and integrated in her Access Point Ovislink WL-5450AP / WL-5460AP. Everywhere there he is ideal solution, where they do not check standard solutions. Such array enables building of cordless network notorious 15 minutes.
ARRAY DOESN'T HAVE POE FTP CABLE CONNECTOR - YOU CAN BUY THAT CABLE WITH REQUEST LENGH HERE
FTP cable connector belongs to introduce for center of building and connect to power supply and additional LAN (im lengh in array) cable connect to DSL modem, switch or for computer.
Description of Access Point:
The AirLive WL-5460AP is the successor to the OvisLink Corp.'s popular WL-5450AP Wireless Access Point with outstanding features at an very competitive price. Fully compliant with the 802.11g and 802.11b standard, it is compatible with most wireless devices today. It features 2 LAN ports for connection to router and LAN.
Five modes of work leans WL-5460AP v2 (in this array):
-
AP Mode - The WL-5460AP is the central hub for all your wireless devices
-
Client Mode - Turn the WL-5460AP into a wireless card so you can connect with remote AP
-
Bridge Mode - To connect 2 LANs together wirelessly
-
WDS Repeater - To increase the wireless coverage of a WDS enabled AP/Router
-
WISP Mode - The WISP mode is similar to Client Mode. IP sharing function is added so you can share the WISP connection with many PCs
The WL-5460APv2 features the new Wireless Client Isolation function previous available only in more expensive APs. When you enable this function, the wireless clients will not be able to see each other. Therefore, it is an important function for office and Hotspot operator to protect the security between different wireless users.
The WL-5460APv2 features ACK timeout function to let you adjust the timeout value for long distance operation. In addition, 5-level TX power adjustment let you match different antennas for law compliance. The ability to set lower TX output power is also crucial if you want to match the AP with external power amplifier.
The WL-5460APv2 support WEP, WPA and WPA2 security functions. In addition, WPA enterprise for 802.1x authenticator are featured for AP and WDS mode. The combination of Encryption, Hide SSID and Access Control ensures your wireless network is completely secured from intruder.
Specyfication:
- Standards - IEEE 802.11b, Wi-Fi compliant / IEEE 802.11g standard
- Chipset - Realtek 8186
- Wireless chipset - Realtek RTL 8225
- FLASH memory - 2 MB, 16MB RAM
- Frequency range - 2.412GHz-2.4835GHz
- Modulation technique - 802.11g - Orthogonal Frequency Division Multiplexing (64QAM, 16QAM, QPSK, BPSK) - 802.11b - Direct Sequence Spread Spectrum (CCK, DQPSK, DBPSK)
- Data rate - 54 Mbps, 48 Mbps, 36 Mbps, 24 Mbps, 18 Mbps, 11 Mbps, 5.5 Mbps, 2 Mbps, 1 Mbps
- Output power - up to 26dBm
- Supporting OS - Windows 98/98SE, Windows Me, Windows 2000, Windows XP, Windows NT 4.0, Redhat6.2 / TurboLinux6.0
- Working temperature pracy - -20 - 40 °C
- Power supply - PoE
- EMI - CE, FCC Class B, VCCI Class B
- Security - WEP 64/128 bit, MAC filltering, WPA, Radius support
Whether it's for office or home environment, the AirLive 802.11g family bring you the maximum performance and security for today's high speed wireless network.
Description of antenna:
There is antenna for distant clients from 50m to 5km. Due to employment of new transformer impedancji and high quality of materials (aluminum and resistant materials artificial on microwaves and we have gotten acid rains for many 20dBi antennas sold perfect electric parameters). Antenna owns build in connector type TNC female. It is possible to connect her for all cordless net cards and access Points.
Characteristics of work of antennas:
Antenna for cordless transmission data to frequency 2,4GHz
Specyfication:

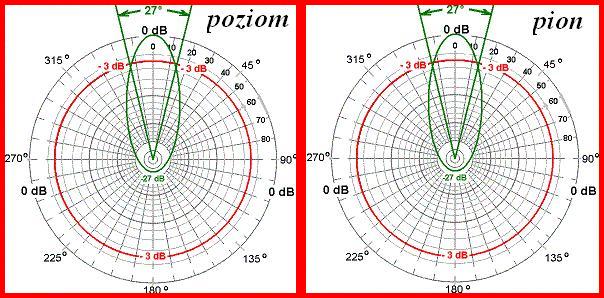

- Gain - work with other antenna in horizontal or vertical polarization working 15dBi
- Gain - work with other antenna in circled polarization 18dBi
- Polaryzation - circled
- Suppressing for linear [H] or [V] - 3dB
- Suppressing of mirror signal - 17dB
- Backward radiation - -24 dB
- Half power beamwidth [H] - 27°
- Half power beamwidth [V] - 27°
- Connetor type - TNC female
- VSWR - 1,5
- Impedance - 50Ohm
- Dimensions - 500mm
- Weight - 0,56kg
- Grapple for mast - 30-60 mm
I send behind collecting most eager. You will pay on Post Office at receipt. Time of supply mail days 2-3 - near. Courier firm DPD you will receive commodity on second day after shopping.
(*) Note! Despite small force AP collated access point can cause outreaching of admissible value 20 dbm e.i.r.p, so such juxtaposition are executable on individual order of entitled client only. Time of realization of order from 1 for 4 days.
|
