OUTDOOR array on Ovislink WLA-9000AP 20m PoE
This array allows fold to outdoor instellment. Everywhere there he is ideal solution, where they do not check standard solutions. Such array enables building of cordless network notorious 15 minutes.

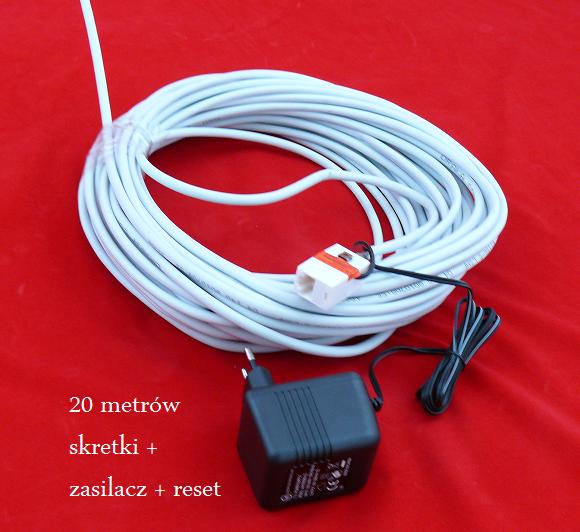

Complete supplying in array for 20m PoE cable with power supply. Array belongs to place outside usually on roof.
Manner of array connection to antenna:
20m long cable belongs to introduce for center of building in array be placed on - dividing on power supply and additional LAN cable for DSL modem, switch or for computer. Array doesn't have antenna in kit.
Discription of Access Point:
The WLA-9000AP is a dream device for WISP to build their wireless networks. The AP features 2 Atheros 11a/b/g radios that run in 5Ghz or 2.4GHz frequency band. Moreover, it provides hi-power at 11a mode for extra long distance application. There is an intergraded 802.3af POE port to let you run the AP at up to 100 meter distance away from the power source. Advanced software functions such as 14 wireless modes, Wireless Duplexing, Bandwidth Control, Multiple SSID&VLAN, SNMP
The WLA-9000AP is equipped with 2 high-powered Atheros radios that can run in Dual 11a mode or A+G mode. Unlike Competitor's solution that can only run A+G mode (1 radio run in 11a and 1 radio run in 11g),.the WLA-9000AP's Radio 1 runs in the 11a 5GHz mode while the radio 2 runs at the 11a/b/g dual band mode. This combines with AirLive sophisticated 14-mode firmware makes the WLA-9000AP suitable for all the dual radio applications.
AirLive adds high power amplifier to run the AP at 23dBm in 11a and 11g modes(200mW), that's 4 times the output power of normal 11a radio(50mW). Furthermore, the WLA-9000AP supports SuperA, SuperG and Turbo modes for 108mbps operations. In addition, 3 programmable LAN/WAN ports are available for multi-mode AP/Router configuration.
WLA-9000AP VS MikroTik - DOWNLOAD
Under the wireless duplexing mode, the WLA-9000AP is capable of combining the 2 radios into one single high speed link. This mean when you are 2 WLA-9000AP linking together, it can go as high as 60Mbps real thoroughpput in Duplex Super-A mode, that’s 3 times faster than normal 11a/g link! It is perfect for use in wireless backbone application. Please click the flash below to see details explanation and configurations.
The WLA-9000AP can operate in multiple wireless modes for different application environments. Up to 14 Wireless Operation Modes are available.
Exemplary modes of work:
One of mode of work of broadcasting unit allows to collate connection on broadcasting link for (FullDuplex TX WLAN and for RX WLAN2). Following mode is equivalent Mikrotik Dual Nstreme:
Double WDS Bridge both act as relay station in this mode AP, each radio in one direction independently.
Double AP each radio acts as independent baseline station in this mode. It gives capability about many for cover of field that signal more and serving of more of user.
AP + WDS Mode it can be connected in this case with skeleton network in mode AP WDS Bridge, but act other radio locally as AP.
In this case just as one radio is connected with main base highly, but second transfers signal locally further. It as well as they are taken advantage by operators of broadcasting internet for expansion of coverage above-mentioned configuration often very, especially at lack of optical visibility
Other functions of software:
-
Multi-SSID for creation of different broadcasting network on one AP
-
VLAN TAG for better control and managements network
-
QoS for WMM
-
Isolation of client in mode AP
-
Support SNMP v1/v2
-
Adjusted exit force
-
ACK Timeout
-
Limiting of user
-
PSK/TKIP/AES support ,WPA2 oraz WEP 152-bit
-
Supprot for Super A/G
-
Support for Radius
-
HTB QoS, P2P
Specyfication:
-
Hardware: processor AR5312, 8MB Flash, 32MB RAM
-
Radio: 1x 802.11a + 1x 802.11 a/b/g, SuperA/G, outdoor power max 23dBm
-
Antenna - 1 x RP-SMA connector, 2dBi
-
Frequency range - Radio1: 802.11a : 5.15 to 5.825 GHz, Radio2: 802.11b/g:2.412~2.472GHz, 802.11a : 5.15 to 5.825 GHz
-
Power supply - DC - 5,5V/2.5A, PoE 48V/0.48A
WLA-9000AP is equipped with an 802.3af Power Over Ethernet port. Therefore, you do not need a separate POE Splitter. When used with the optional POE adapter and DC Injector, it can operate at up to 100 meter away from the power source. Standard DC power adapter is provided for non-POE application.

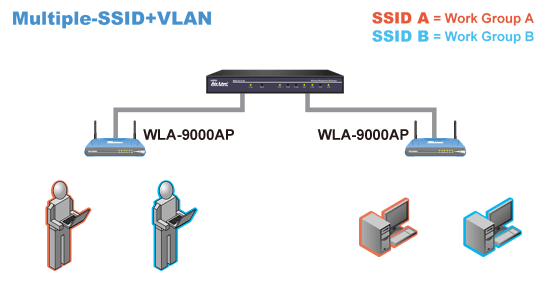

WLA-9000AP provides Multiple-SSID function to create different wireless networks using one AP. Each SSID can have its own encryption policy. The TAG VLAN feature allows service provider to control service content of each SSID network all the way back to core router. Together with the built-in WMM priority, it is possible to create different wireless networks with different priority levels across a large network.
WLA-9000AP provides capability to control each user’s bandwidth individually. It can control either “Total Bandwidth” or “Each IP/MAC Bandwidth”. Therefore, the WISP operators can offer different class of connection speeds for different subscription fees - just like the ADSL service!
The WLA-9000AP has additional features such as Site Survey wizard to make client and bridge connection easier. It is the most featured rich and high performance access point in the market.
I send behind collecting most eager. You will pay on Post Office at receipt. Time of supply mail days 2-3 - near. Courier firm DPD you will receive commodity on second day after shopping.
|
